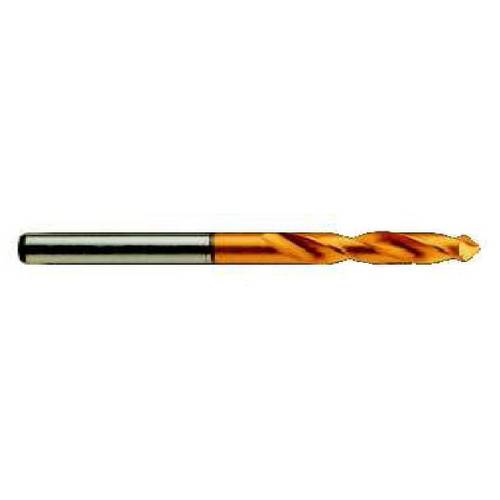

PUNTA HSS-EX-TIN EXTRA CORTA INOX
COD. 570.7 - PUNTE HPD-SERIE TIN PER ALTA PRECISIONE, ACCIAIO INOX
| CODICE | DIAMETRO d1 | LUNG. TOTALE l1 | LUNG. di TAGLIO l2 |
| 570700200 | 2,00 | 44 | 12 |
| 570700210 | 2,10 | 44 | 12 |
| 570700220 | 2,20 | 45 | 13 |
| 570700230 | 2,30 | 45 | 13 |
| 570700240 | 2,40 | 46 | 14 |
| 570700250 | 2,50 | 46 | 14 |
| 570700260 | 2,60 | 46 | 14 |
| 570700270 | 2,70 | 48 | 16 |
| 570700280 | 2,80 | 48 | 16 |
| 570700290 | 2,90 | 48 | 16 |
| 570700300 | 3,00 | 48 | 16 |
| 570700310 | 3,10 | 50 | 18 |
| 570700320 | 3,20 | 50 | 18 |
| 570700330 | 3,30 | 50 | 18 |
| 570700340 | 3,40 | 52 | 20 |
| 570700350 | 3,50 | 52 | 20 |
| 570700360 | 3,60 | 52 | 20 |
| 570700370 | 3,70 | 52 | 20 |
| 570700380 | 3,80 | 54 | 22 |
| 570700390 | 3,90 | 54 | 22 |
| 570700400 | 4,00 | 54 | 22 |
| 570700410 | 4,10 | 66 | 22 |
| 570700420 | 4,20 | 66 | 22 |
| 570700430 | 4,30 | 68 | 24 |
| 570700440 | 4,40 | 68 | 24 |
| 570700450 | 4,50 | 68 | 24 |
| 570700460 | 4,60 | 68 | 24 |
| 570700470 | 4,70 | 68 | 24 |
| 570700480 | 4,80 | 70 | 26 |
| 570700490 | 4,90 | 70 | 26 |
| 570700500 | 5,00 | 70 | 26 |
| 570700510 | 5,10 | 70 | 26 |
| 570700520 | 5,20 | 70 | 26 |
| 570700530 | 5,30 | 70 | 26 |
| 570700540 | 5,40 | 72 | 28 |
| 570700550 | 5,50 | 72 | 28 |
| 570700560 | 5,60 | 72 | 28 |
| 570700570 | 5,70 | 72 | 28 |
| 570700580 | 5,80 | 72 | 28 |
| 570700590 | 5,90 | 72 | 28 |
| 570700600 | 6,00 | 72 | 28 |
| 570700610 | 6,10 | 75 | 31 |
| 570700620 | 6,20 | 75 | 31 |
| 570700630 | 6,30 | 75 | 31 |
| 570700640 | 6,40 | 75 | 31 |
| 570700650 | 6,50 | 75 | 31 |
| 570700660 | 6,60 | 75 | 31 |
| 570700670 | 6,70 | 75 | 31 |
| 570700680 | 6,80 | 78 | 34 |
| 570700690 | 6,90 | 78 | 34 |
| 570700700 | 7,00 | 78 | 34 |
| 570700710 | 7,10 | 78 | 34 |
| 570700720 | 7,20 | 78 | 34 |
| 570700730 | 7,30 | 78 | 34 |
| 570700740 | 7,40 | 78 | 34 |
| 570700750 | 7,50 | 78 | 34 |
| 570700760 | 7,60 | 81 | 37 |
| 570700770 | 7,70 | 81 | 37 |
| 570700780 | 7,80 | 81 | 37 |
| 570700790 | 7,90 | 81 | 37 |
| 570700800 | 8,00 | 81 | 37 |
| 570700810 | 8,10 | 87 | 37 |
| 570700820 | 8,20 | 87 | 37 |
| 570700830 | 8,30 | 87 | 37 |
| 570700840 | 8,40 | 87 | 37 |
| 570700850 | 8,50 | 87 | 37 |
| 570700860 | 8,60 | 90 | 40 |
| 570700870 | 8,70 | 90 | 40 |
| 570700880 | 8,80 | 90 | 40 |
| 570700890 | 8,90 | 90 | 40 |
| 570700900 | 9,00 | 90 | 40 |
| 570700910 | 9,10 | 90 | 40 |
| 570700920 | 9,20 | 90 | 40 |
| 570700930 | 9,30 | 90 | 40 |
| 570700940 | 9,40 | 90 | 40 |
| 570700950 | 9,50 | 90 | 40 |
| 570700960 | 9,60 | 93 | 43 |
| 570700970 | 9,70 | 93 | 43 |
| 570700980 | 9,80 | 93 | 43 |
| 570700990 | 9,90 | 93 | 43 |
| 570701000 | 10,00 | 93 | 43 |
| 570701010 | 10,10 | 100 | 43 |
| 570701020 | 10,20 | 100 | 43 |
| 570701030 | 10,30 | 100 | 43 |
| 570701040 | 10,40 | 100 | 43 |
| 570701050 | 10,50 | 100 | 43 |
| 570701060 | 10,60 | 100 | 43 |
| 570701070 | 10,70 | 104 | 47 |
| 570701080 | 10,80 | 104 | 47 |
| 570701090 | 10,90 | 104 | 47 |
| 570701100 | 11,00 | 104 | 47 |
| 570701110 | 11,10 | 104 | 47 |
| 570701120 | 11,20 | 104 | 47 |
| 570701130 | 11,30 | 104 | 47 |
| 570701140 | 11,40 | 104 | 47 |
| 570701150 | 11,50 | 104 | 47 |
| 570701160 | 11,60 | 104 | 47 |
| 570701170 | 11,70 | 104 | 47 |
| 570701180 | 11,80 | 104 | 47 |
| 570701190 | 11,90 | 108 | 51 |
| 570701200 | 12,00 | 108 | 51 |
| 570701210 | 12,10 | 108 | 51 |
| 570701220 | 12,20 | 108 | 51 |
| 570701230 | 12,30 | 108 | 51 |
| 570701240 | 12,40 | 108 | 51 |
| 570701250 | 12,50 | 108 | 51 |
| 570701260 | 12,60 | 108 | 51 |
| 570701270 | 12,70 | 108 | 51 |
| 570701280 | 12,80 | 108 | 51 |
| 570701290 | 12,90 | 108 | 51 |
| 570701300 | 13,00 | 108 | 51 |
