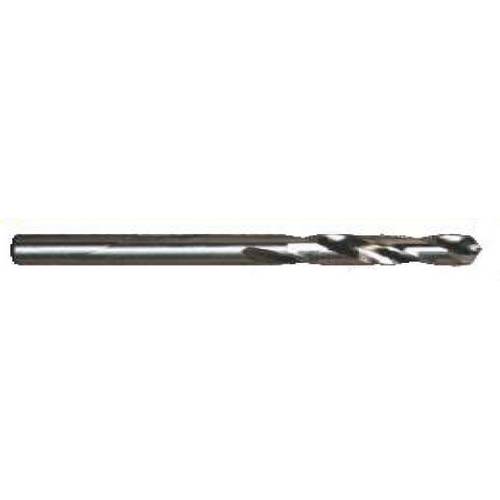

PUNTE HSSco 5% EXTRA CORTE
COD. 400.0 - PER MATERIALI FINO A 800 N/MM2 ADATTE SU TORNI AUTOMATICI
| CODICE | DIAMETRO d1 | LUNG. TOTALE l1 | LUNG. di TAGLIO l2 |
| 400000100 | 1 | 26 | 6 |
| 400000110 | 1,1 | 28 | 7 |
| 400000120 | 1,2 | 30 | 8 |
| 400000125 | 1,25 | 30 | 8 |
| 400000130 | 1,3 | 30 | 8 |
| 400000140 | 1,4 | 32 | 9 |
| 400000150 | 1,5 | 32 | 9 |
| 400000160 | 1,6 | 34 | 10 |
| 400000170 | 1,7 | 34 | 10 |
| 400000175 | 1,75 | 36 | 11 |
| 400000180 | 1,8 | 36 | 11 |
| 400000190 | 1,9 | 36 | 11 |
| 400000200 | 2 | 38 | 12 |
| 400000210 | 2,1 | 38 | 12 |
| 400000220 | 2,2 | 40 | 13 |
| 400000225 | 2,25 | 40 | 13 |
| 400000230 | 2,3 | 40 | 13 |
| 400000240 | 2,4 | 43 | 14 |
| 400000250 | 2,5 | 43 | 14 |
| 400000260 | 2,6 | 43 | 14 |
| 400000270 | 2,7 | 46 | 16 |
| 400000275 | 2,75 | 46 | 16 |
| 400000280 | 2,8 | 46 | 16 |
| 400000290 | 2,9 | 46 | 16 |
| 400000300 | 3 | 46 | 16 |
| 400000310 | 3,1 | 49 | 18 |
| 400000320 | 3,2 | 49 | 18 |
| 400000325 | 3,25 | 49 | 18 |
| 400000330 | 3,3 | 49 | 18 |
| 400000340 | 3,4 | 52 | 20 |
| 400000350 | 3,5 | 52 | 20 |
| 400000360 | 3,6 | 52 | 20 |
| 400000370 | 3,7 | 52 | 20 |
| 400000375 | 3,75 | 52 | 20 |
| 400000380 | 3,8 | 55 | 22 |
| 400000390 | 3,9 | 55 | 22 |
| 400000400 | 4 | 55 | 22 |
| 400000410 | 4,1 | 55 | 22 |
| 400000420 | 4,2 | 55 | 22 |
| 400000425 | 4,25 | 55 | 22 |
| 400000430 | 4,3 | 58 | 24 |
| 400000440 | 4,4 | 58 | 24 |
| 400000450 | 4,5 | 58 | 24 |
| 400000460 | 4,6 | 58 | 24 |
| 400000470 | 4,7 | 58 | 24 |
| 400000475 | 4,75 | 58 | 24 |
| 400000480 | 4,8 | 62 | 26 |
| 400000490 | 4,9 | 62 | 26 |
| 400000500 | 5 | 62 | 26 |
| 400000510 | 5,1 | 62 | 26 |
| 400000520 | 5,2 | 62 | 26 |
| 400000525 | 5,25 | 62 | 26 |
| 400000530 | 5,3 | 62 | 26 |
| 400000540 | 5,4 | 66 | 28 |
| 400000550 | 5,5 | 66 | 28 |
| 400000560 | 5,6 | 66 | 28 |
| 400000570 | 5,7 | 66 | 28 |
| 400000575 | 5,75 | 66 | 28 |
| 400000580 | 5,8 | 66 | 28 |
| 400000590 | 5,9 | 66 | 28 |
| 400000600 | 6 | 66 | 28 |
| 400000610 | 6,1 | 70 | 31 |
| 400000620 | 6,2 | 70 | 31 |
| 400000625 | 6,25 | 70 | 31 |
| 400000630 | 6,3 | 70 | 31 |
| 400000640 | 6,4 | 70 | 31 |
| 400000650 | 6,5 | 70 | 31 |
| 400000660 | 6,6 | 70 | 31 |
| 400000670 | 6,7 | 70 | 31 |
| 400000675 | 6,75 | 74 | 34 |
| 400000680 | 6,8 | 74 | 34 |
| 400000690 | 6,9 | 74 | 34 |
| 400000700 | 7 | 74 | 34 |
| 400000710 | 7,1 | 74 | 34 |
| 400000720 | 7,2 | 74 | 34 |
| 400000725 | 7,25 | 74 | 34 |
| 400000730 | 7,3 | 74 | 34 |
| 400000740 | 7,4 | 74 | 34 |
| 400000750 | 7,5 | 74 | 34 |
| 400000760 | 7,6 | 79 | 37 |
| 400000770 | 7,7 | 79 | 37 |
| 400000775 | 7,75 | 79 | 37 |
| 400000780 | 7,8 | 79 | 37 |
| 400000790 | 7,9 | 79 | 37 |
| 400000800 | 8 | 79 | 37 |
| 400000810 | 8,1 | 79 | 37 |
| 400000820 | 8,2 | 79 | 37 |
| 400000825 | 8,25 | 79 | 37 |
| 400000830 | 8,3 | 79 | 37 |
| 400000840 | 8,4 | 79 | 37 |
| 400000850 | 8,5 | 79 | 37 |
| 400000860 | 8,6 | 84 | 40 |
| 400000870 | 8,7 | 84 | 40 |
| 400000875 | 8,75 | 84 | 40 |
| 400000880 | 8,8 | 84 | 40 |
| 400000890 | 8,9 | 84 | 40 |
| 400000900 | 9 | 84 | 40 |
| 400000910 | 9,1 | 84 | 40 |
| 400000920 | 9,2 | 84 | 40 |
| 400000925 | 9,25 | 84 | 40 |
| 400000930 | 9,3 | 84 | 40 |
| 400000940 | 9,4 | 84 | 40 |
| 400000950 | 9,5 | 84 | 40 |
| 400000960 | 9,6 | 89 | 43 |
| 400000970 | 9,7 | 89 | 43 |
| 400000975 | 9,75 | 89 | 43 |
| 400000980 | 9,8 | 89 | 43 |
| 400000990 | 9,9 | 89 | 43 |
| 400001000 | 10 | 89 | 43 |
| 400001020 | 10,2 | 89 | 43 |
| 400001025 | 10,25 | 89 | 43 |
| 400001050 | 10,5 | 89 | 43 |
| 400001075 | 10,75 | 95 | 47 |
| 400001100 | 11 | 95 | 47 |
| 400001125 | 11,25 | 95 | 47 |
| 400001150 | 11,5 | 95 | 47 |
| 400001175 | 11,75 | 95 | 47 |
| 400001200 | 12 | 102 | 51 |
| 400001225 | 12,25 | 102 | 51 |
| 400001250 | 12,5 | 102 | 51 |
| 400001275 | 12,75 | 102 | 51 |
| 400001300 | 13 | 102 | 51 |
| 400001325 | 13,25 | 107 | 54 |
| 400001350 | 13,5 | 107 | 54 |
| 400001375 | 13,75 | 107 | 54 |
| 400001400 | 14 | 107 | 54 |
| 400001425 | 14,25 | 111 | 56 |
| 400001450 | 14,5 | 111 | 56 |
| 400001475 | 14,75 | 111 | 56 |
| 400001500 | 15 | 111 | 56 |
| 400001525 | 15,25 | 115 | 58 |
| 400001550 | 15,5 | 115 | 58 |
| 400001575 | 15,75 | 115 | 58 |
| 400001600 | 16 | 115 | 58 |
| 400001625 | 16,25 | 119 | 60 |
| 400001650 | 16,5 | 119 | 60 |
| 400001675 | 16,75 | 119 | 60 |
| 400001700 | 17 | 119 | 60 |
| 400001725 | 17,25 | 123 | 62 |
| 400001750 | 17,5 | 123 | 62 |
| 400001775 | 17,75 | 123 | 62 |
| 400001800 | 18 | 123 | 62 |
| 400001825 | 18,25 | 127 | 64 |
| 400001850 | 18,5 | 127 | 64 |
| 400001875 | 18,75 | 127 | 64 |
| 400001900 | 19 | 127 | 64 |
| 400001925 | 19,25 | 131 | 66 |
| 400001950 | 19,5 | 131 | 66 |
| 400001975 | 19,75 | 131 | 66 |
| 400002000 | 20 | 131 | 66 |
| 400002050 | 20,5 | 136 | 68 |
| 400002100 | 21 | 136 | 68 |
| 400002150 | 21,5 | 141 | 70 |
| 400002200 | 22 | 141 | 70 |
| 400002250 | 22,5 | 146 | 72 |
| 400002300 | 23 | 146 | 72 |
| 400002350 | 23,5 | 146 | 72 |
| 400002400 | 24 | 151 | 75 |
| 400002450 | 24,5 | 151 | 75 |
| 400002500 | 25 | 151 | 75 |
| 400002600 | 26 | 156 | 78 |
| 400002700 | 27 | 162 | 81 |
| 400002800 | 28 | 162 | 81 |
| 400002900 | 29 | 168 | 84 |
| 400003000 | 30 | 168 | 84 |
| 400003100 | 31 | 174 | 87 |
